Compact

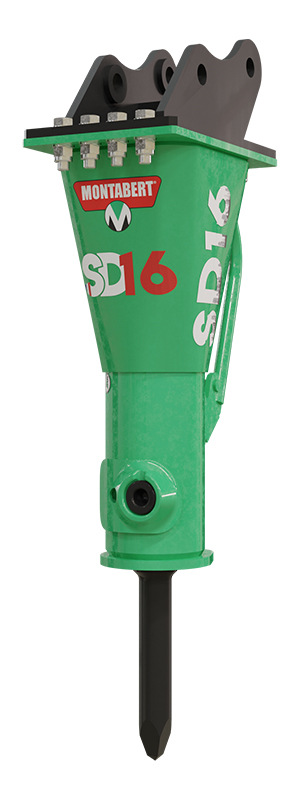

SD16 Hydraulic Rock Breaker
- Hydraulic accumulator: no more regular nitrogen controls and recharges on jobsites.
- Tie rod free: less weight and cost, more power and reliability.
- Made in France: superior quality steel and manufacturing excellence.
- Improved soundproofing : lower noise levers for urban jobsites.
- Easy handling: two lifting points to handle the breaker with perfect balance and safety, also acting as hoses protection.
- Tool changing: new user friendly, simple, safe and reliable system, with one single retainer.
The SD16 hydraulic rock breaker is known for the following features:
- Minimal hydraulic maintenance
- Fully dampened and soundproofed
- High back-pressure tolerance
- Single body, circular shape
- Blank firing protection
- Easy maintenance and installation
- Smart pressure and energy regulation
- Long life equipment
- Light but powerful
| Carrier weight range (min–max) | 1.5–3.7 t |
| Breaker operating weight | 194 kg |
| Oil flow range (min–max) | 25–50 l/min. |
| Frequency | 1,550 bpm |
| Operating pressure (max) | 120 bar |
| Tool diameter | 55 mm |
The SD16 works with the following complementary tools, allowing you to handle any jobsite:
- Blunt
- Chisel
- Pyramidal
The following upgrades are available for the SD16:
- Adapter plate
- Special color and painting
